automatically adapt to the working conditions
overload protection
short-circuit protection
no-load protection
safe and reliable
3D structure transformer
low temperature rise
long service life
Patrick's Collection

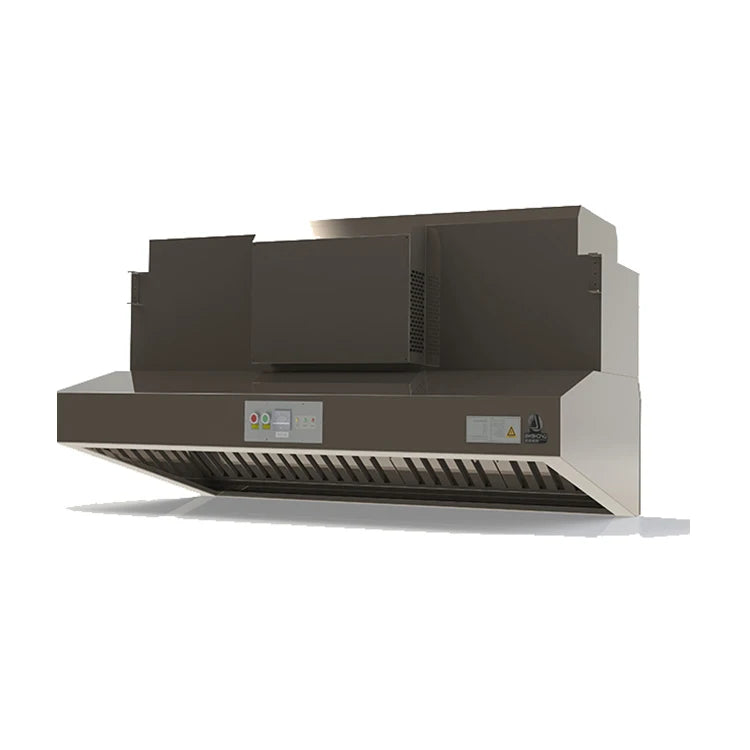

LVcheng ISO kitchen chimney commercial kitchen range hood with precipitador electroesttico ionizador
LVcheng ISO kitchen chimney commercial kitchen range hood with precipitador electroesttico ionizador
Regular price
$8,000.99 USD
Regular price
$0.00 USD
Sale price
$8,000.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

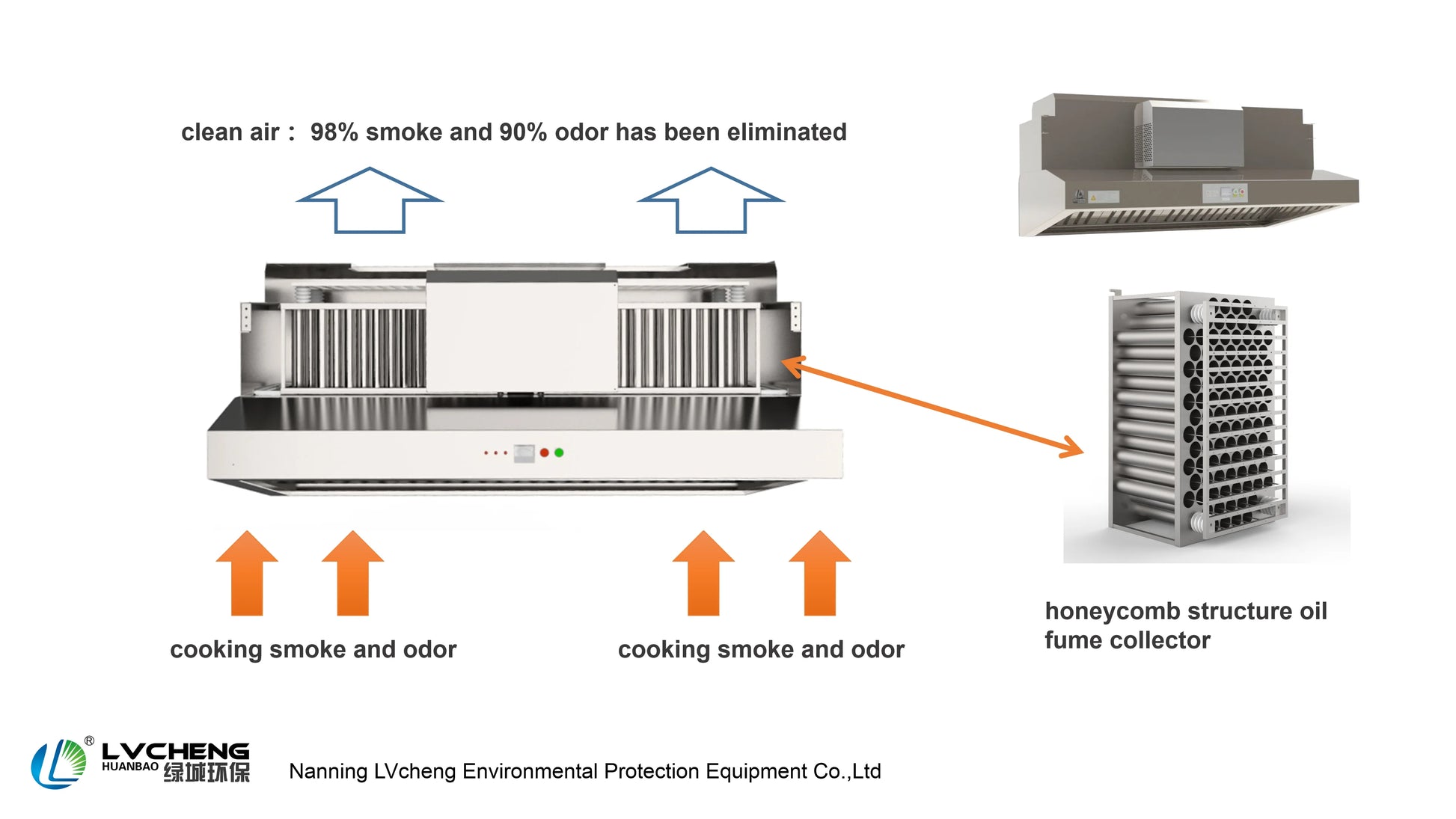

What is ESP?
· An electrostatic precipitator is a type of filter (dry scrubber) that uses static electricity to remove grease and smoke from
exhaust fumes before it exit from the ventilation system.
· Engineers build up a honeycomb structure electric filed which is charged with a high voltage. Smoke particles pick up a charge
when they pass the charged electrodes.
· Then the charged smoke particles are attracted to oppositely charged collecting cylinders.
As a result, at least 90%-98% of smoke will be removed！
No smoke will be seen from outlet.
exhaust fumes before it exit from the ventilation system.
· Engineers build up a honeycomb structure electric filed which is charged with a high voltage. Smoke particles pick up a charge
when they pass the charged electrodes.
· Then the charged smoke particles are attracted to oppositely charged collecting cylinders.
As a result, at least 90%-98% of smoke will be removed！
No smoke will be seen from outlet.

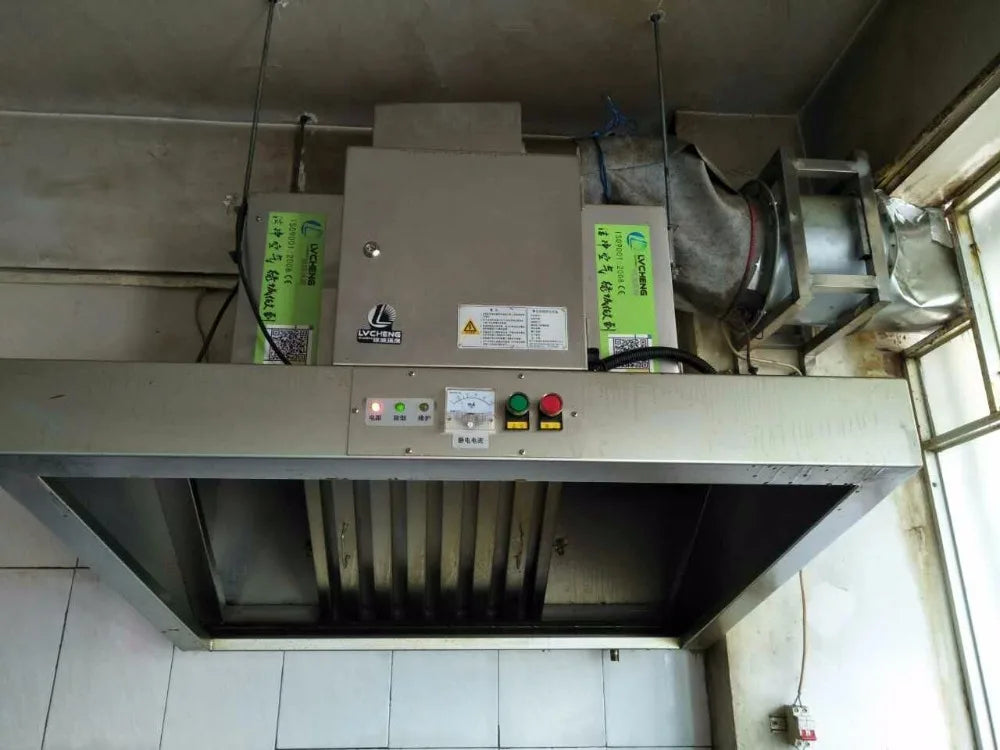

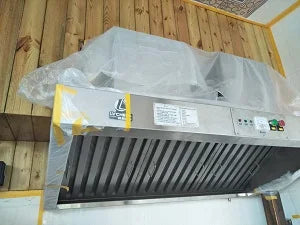

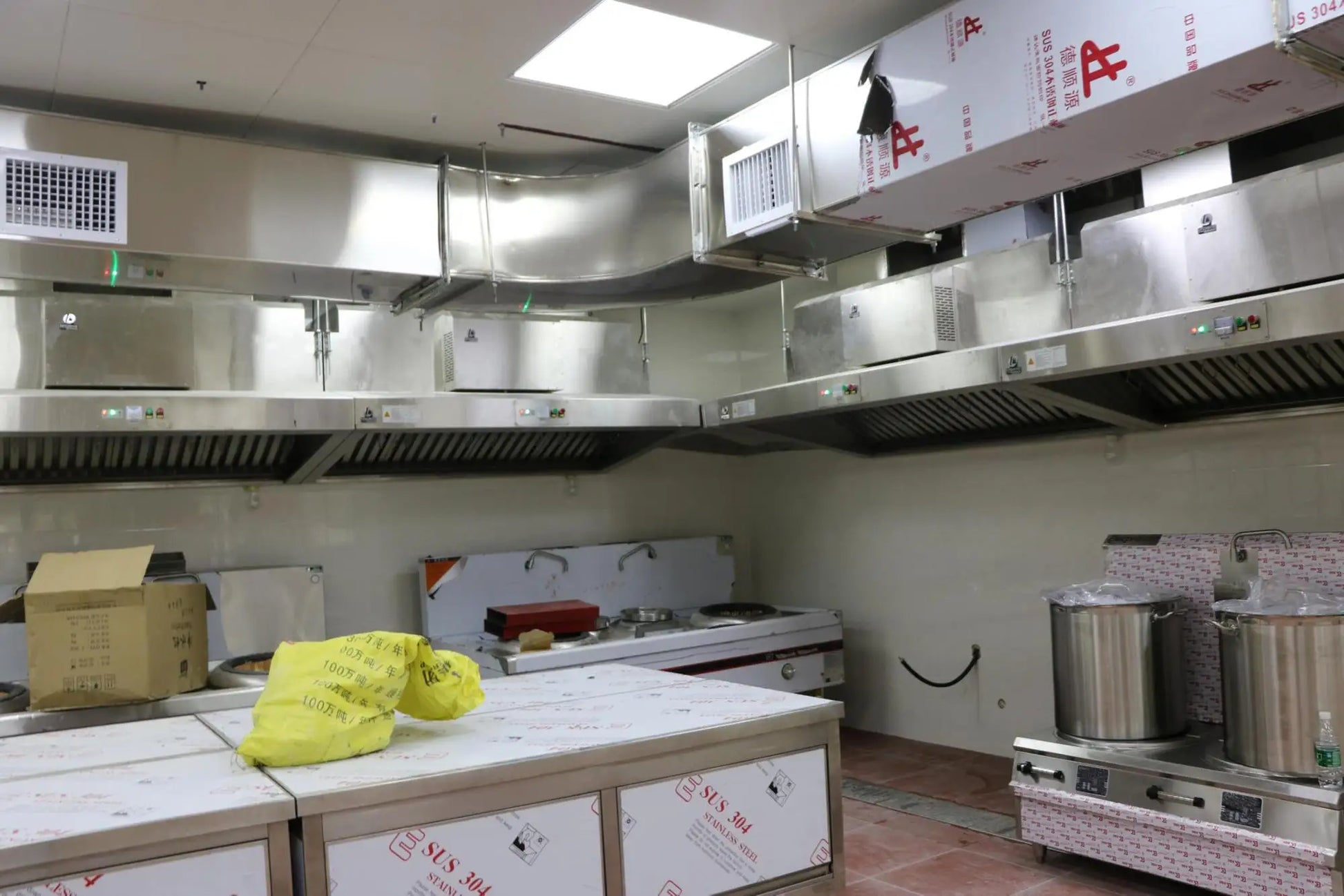

Applications
Advantage I
Our advantages
Unique patented technology: Intelligent power control system
Honeycomb structure smoke collector
excellent rigidity
not easily deformed
powerful blue tip discharge makes high efficiency
ionize and decompose most of odor
Modular design
Most parts can be quickly disassembled on site for easy installation and maintenance.
Specification
98% purification rate of SMOKE
90% purification rate of ODOR
Material of Housing: stainless steel 201 in 1.0mm thickness.
Material of Fume Collectors: stainless steel 201
* Stainless steel 304 is available too, please kindly tell us if you need it.
|
No.
|
Model
|
Air flow
(M3/Hr)
|
flange
(inner)
A1*B1
|
Volume
Length * Width * Height (mm)
|
Power
(w)
|
Windage
(Pa)
|
Net
Weight
(kg)
|
|
1
|
LCA-2H
|
2000
|
230*300
|
1170*1150*905
|
430
|
150
|
120
|
|
2
|
LCA-4H
|
4000
|
305*255
|
1970*1150*905
|
580
|
150
|
175
|
Note: This hood do NOT contain exhaust fan inside!
How to choose suitable HOOD for my commercial kitchen?
It's very easy, just make sure that the hoods can cover all the cooking ranges or other cooking devices.
For example, the full length of cooking ranges in Mary's kitchen is 4 meters. Then Mary should choose 2 sets of LCA-4H to cover all ranges.
